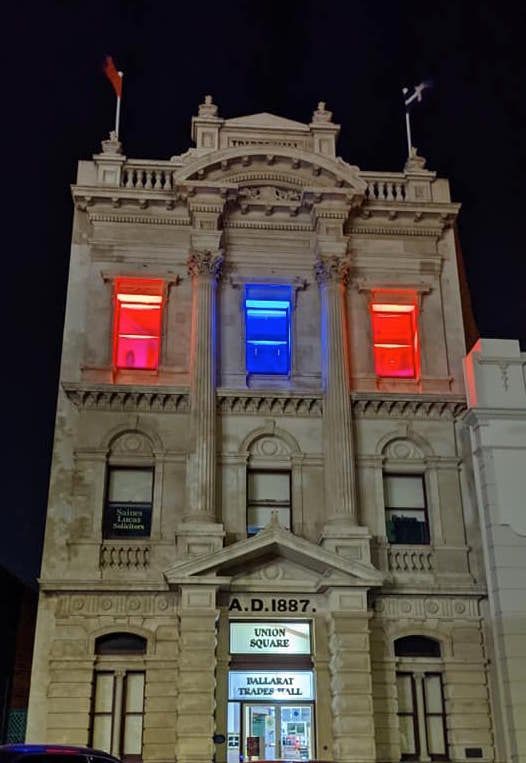

Ballarat Trades Hall has undertaken a major technical upgrade
to boost the capacity to host a wide range of live performances and events.

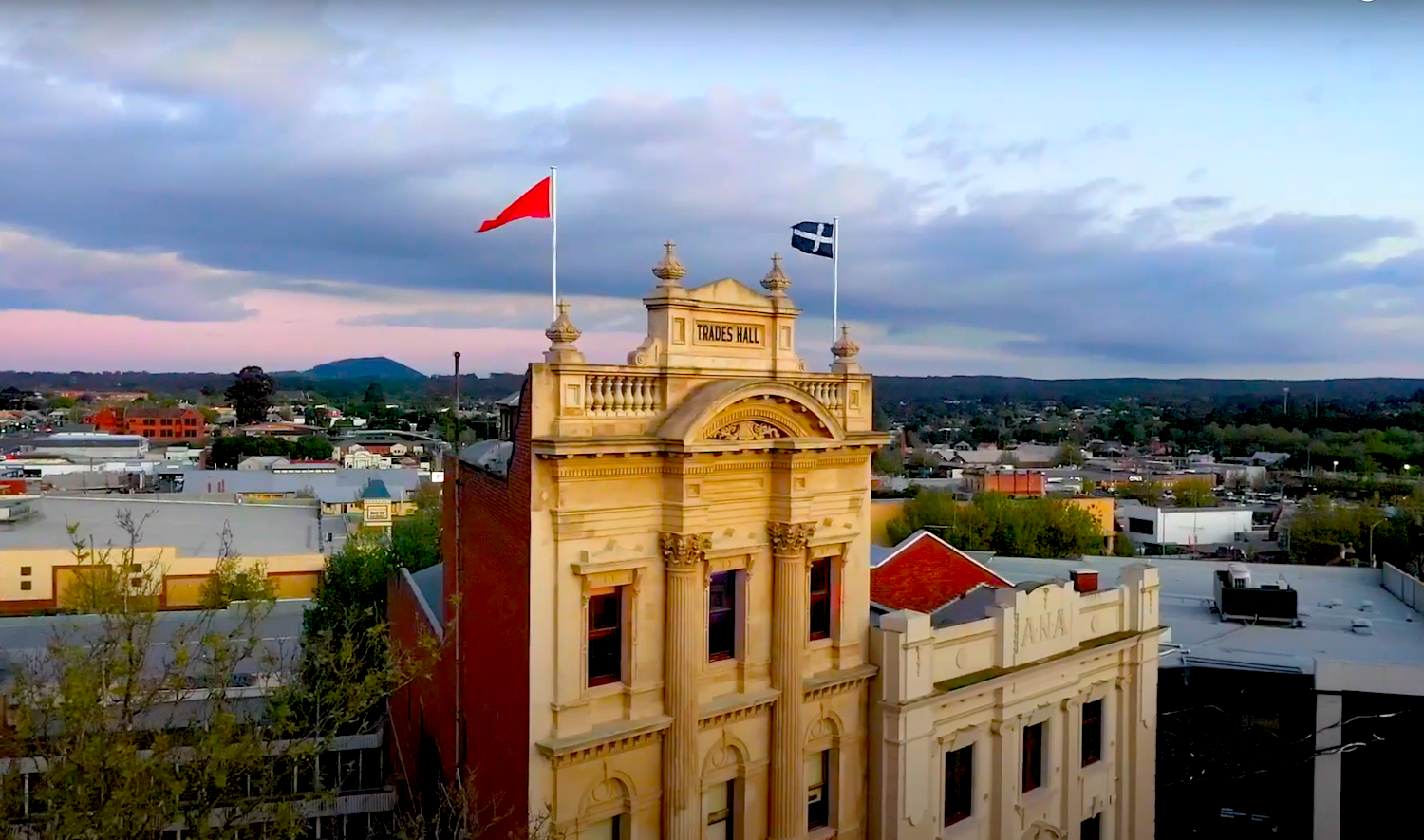

Come and enjoy amazing local music and performance in the historic Trades Hall venue, located in the heart of the CBD’s Creative Arts precinct and just a short distance from the Ballarat Train Station.

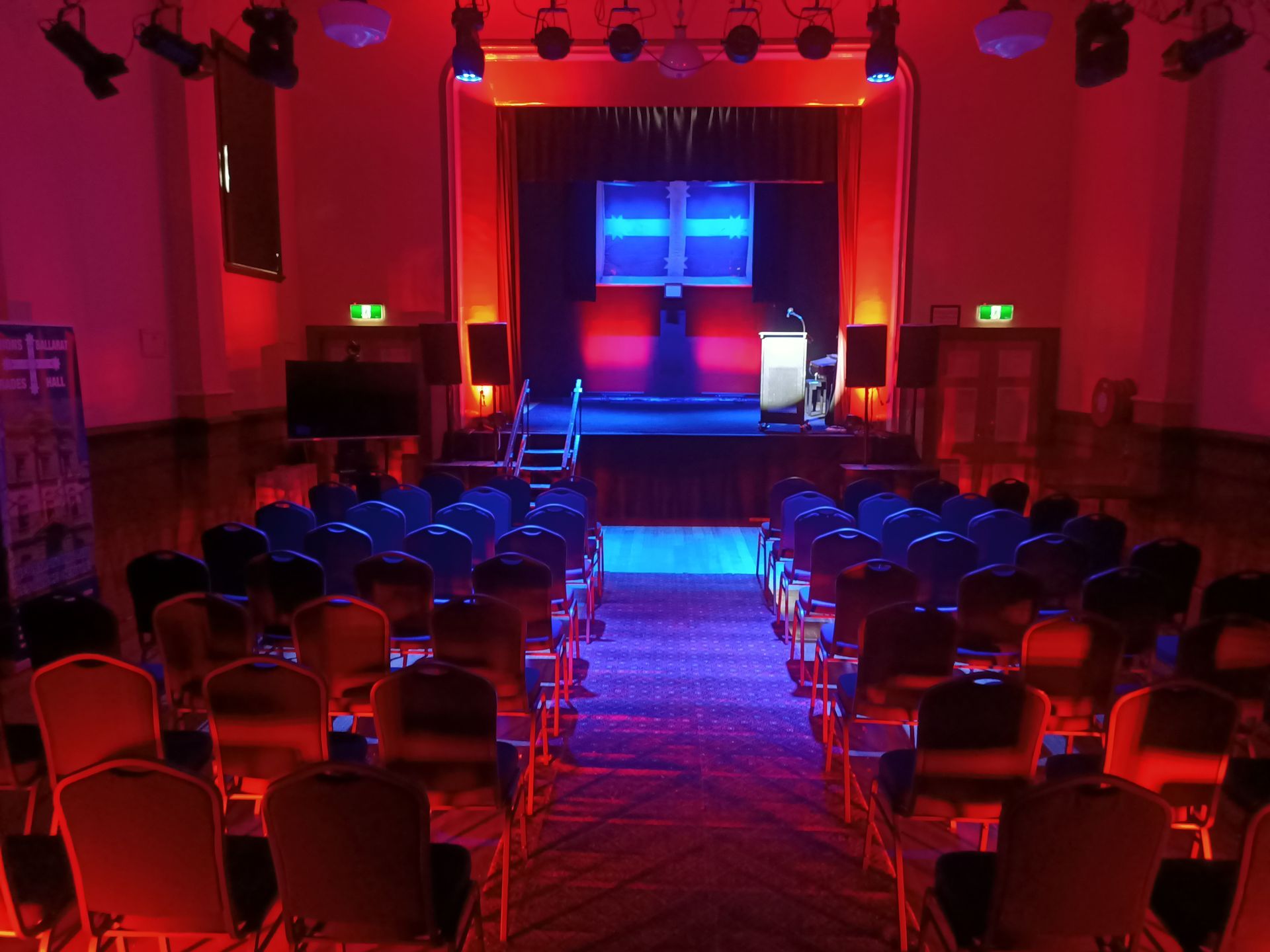

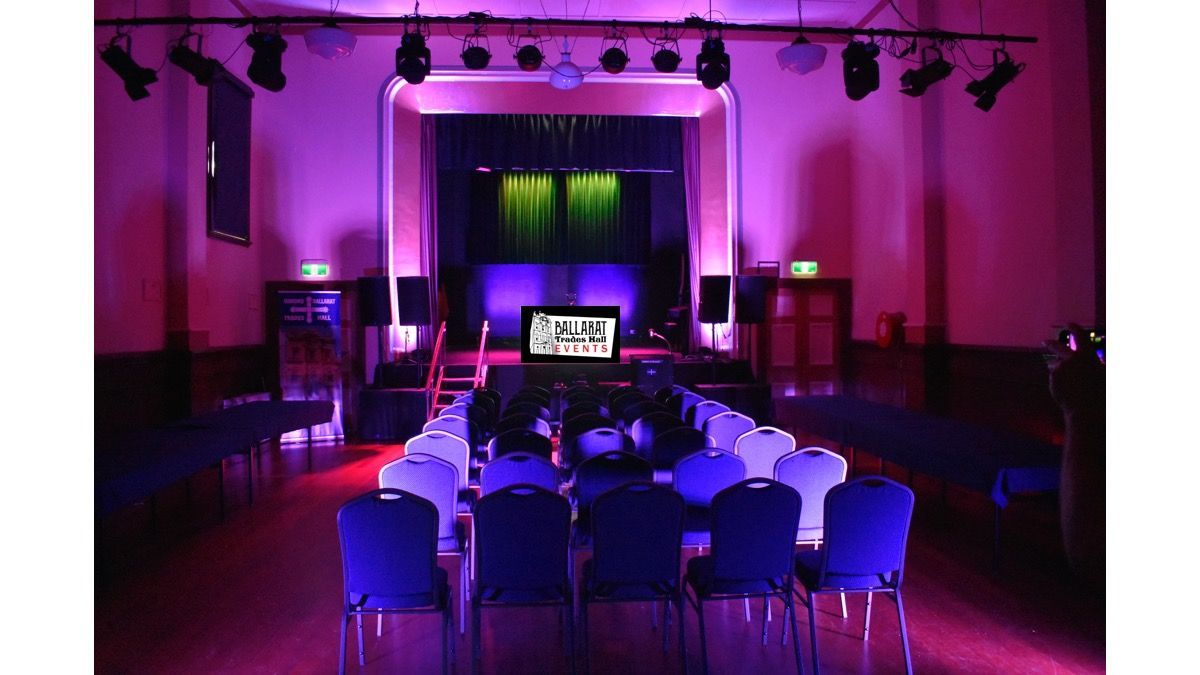

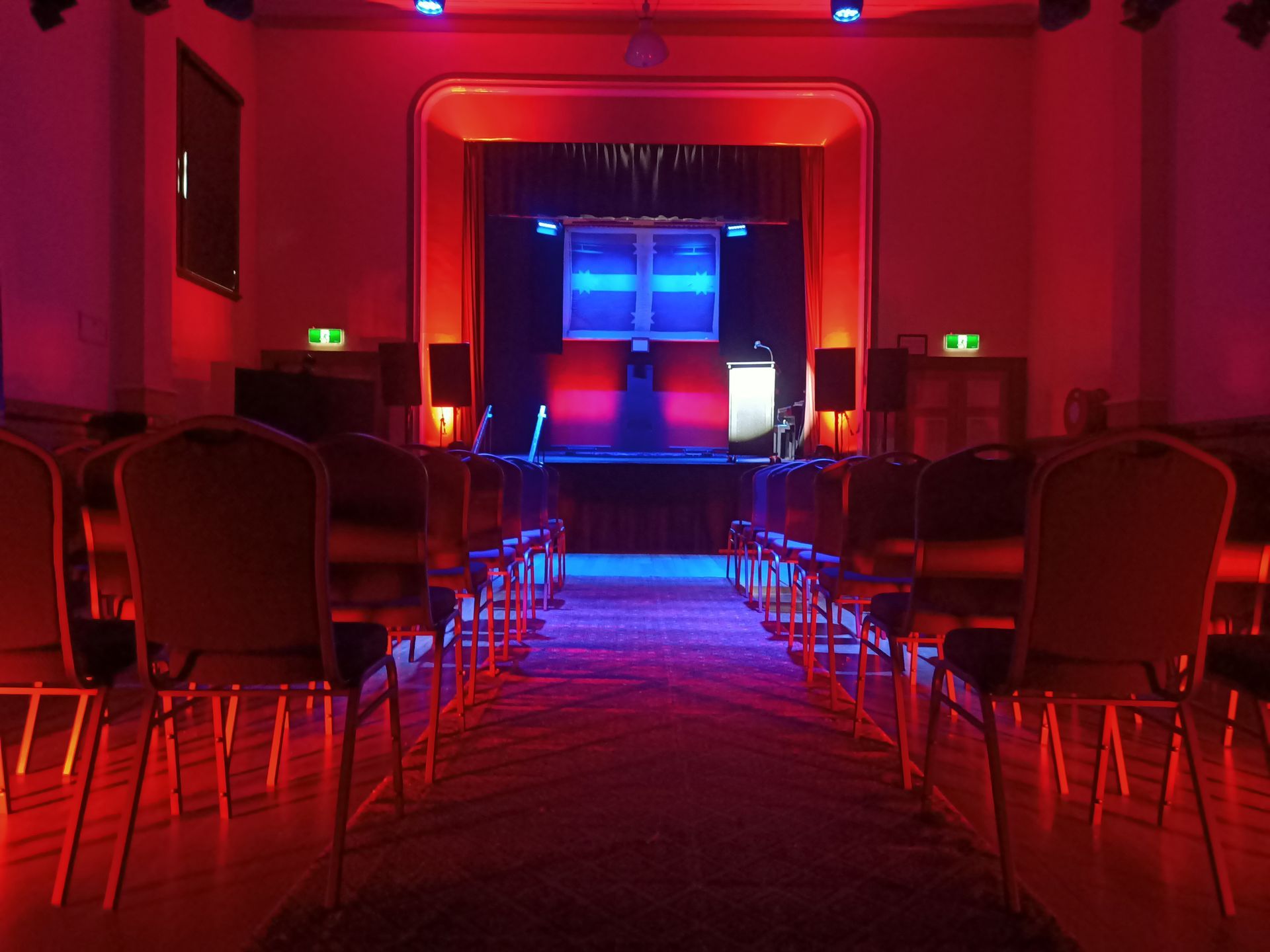

The Hall can be configured for a range of seating and performance requirements and has a capacity of up to 160.

Trades Hall has a long history of community and cultural events since 1887 and is available for hire with top quality Lighting and Sound equipment and in house Ticketing and Promotion capability. Video/Audio recording and Live Streaming are also available for both public events and private hire. A fully Licensed Bar is available during most events.



SHOWS AND GIGS

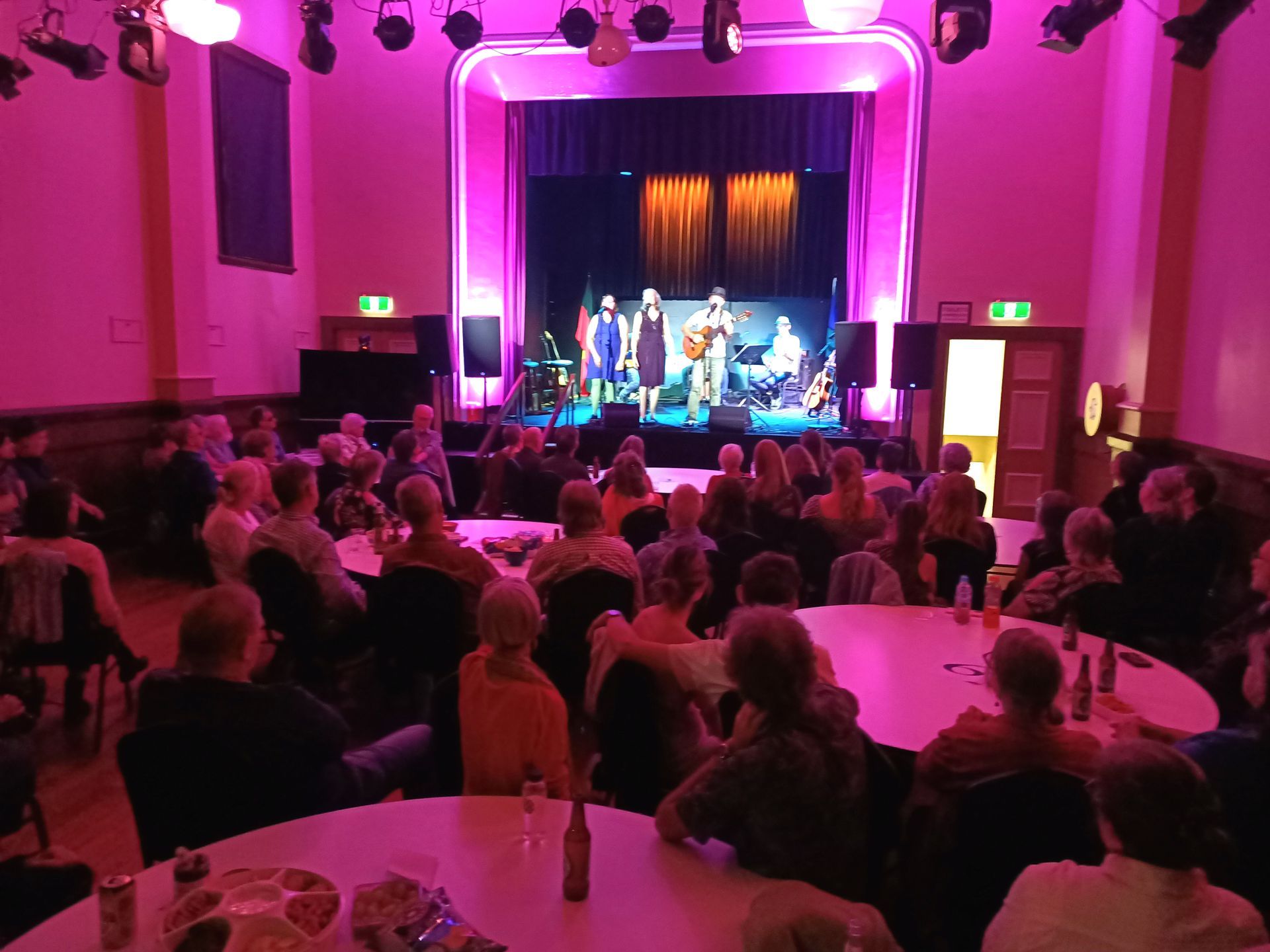

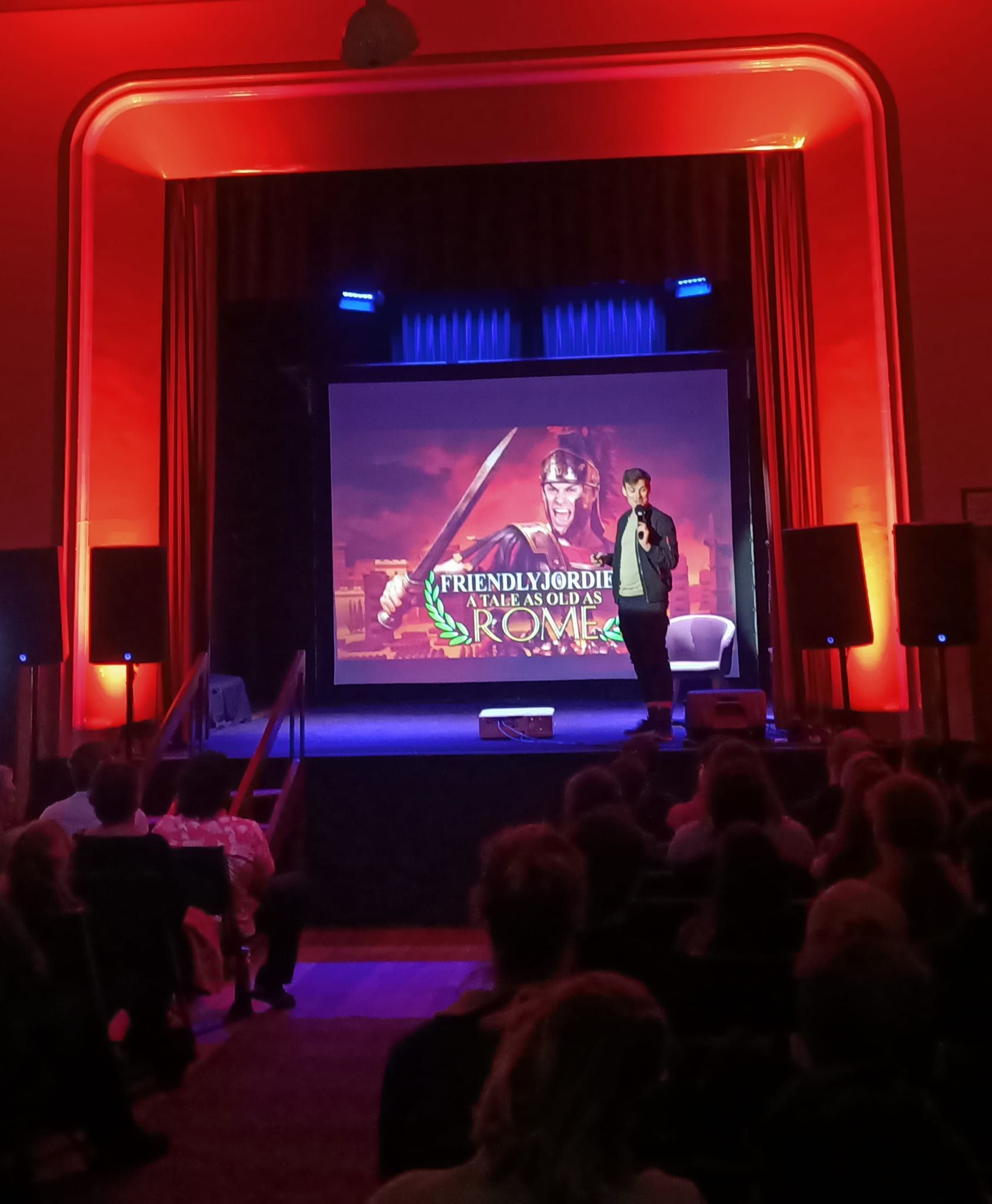

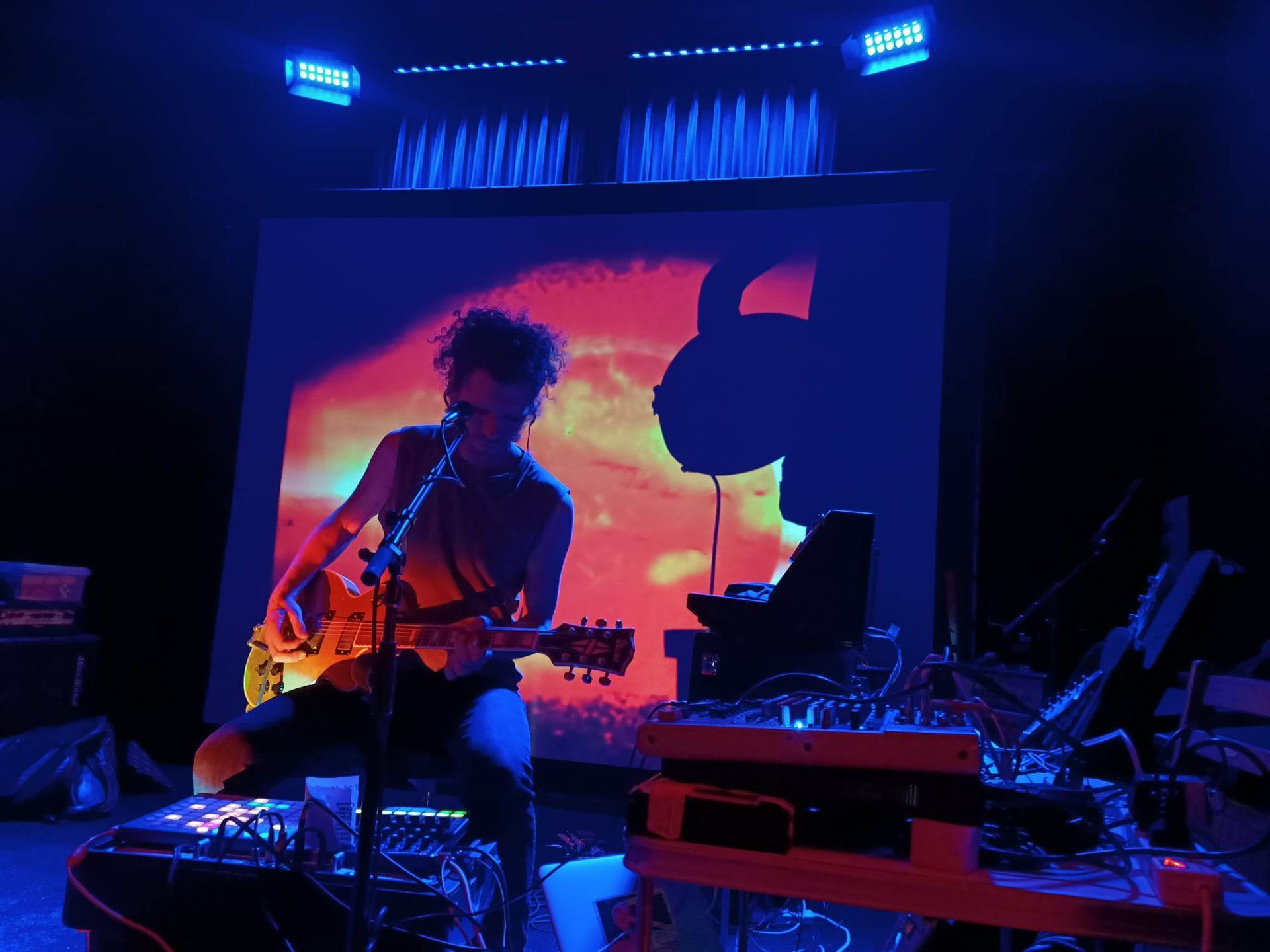

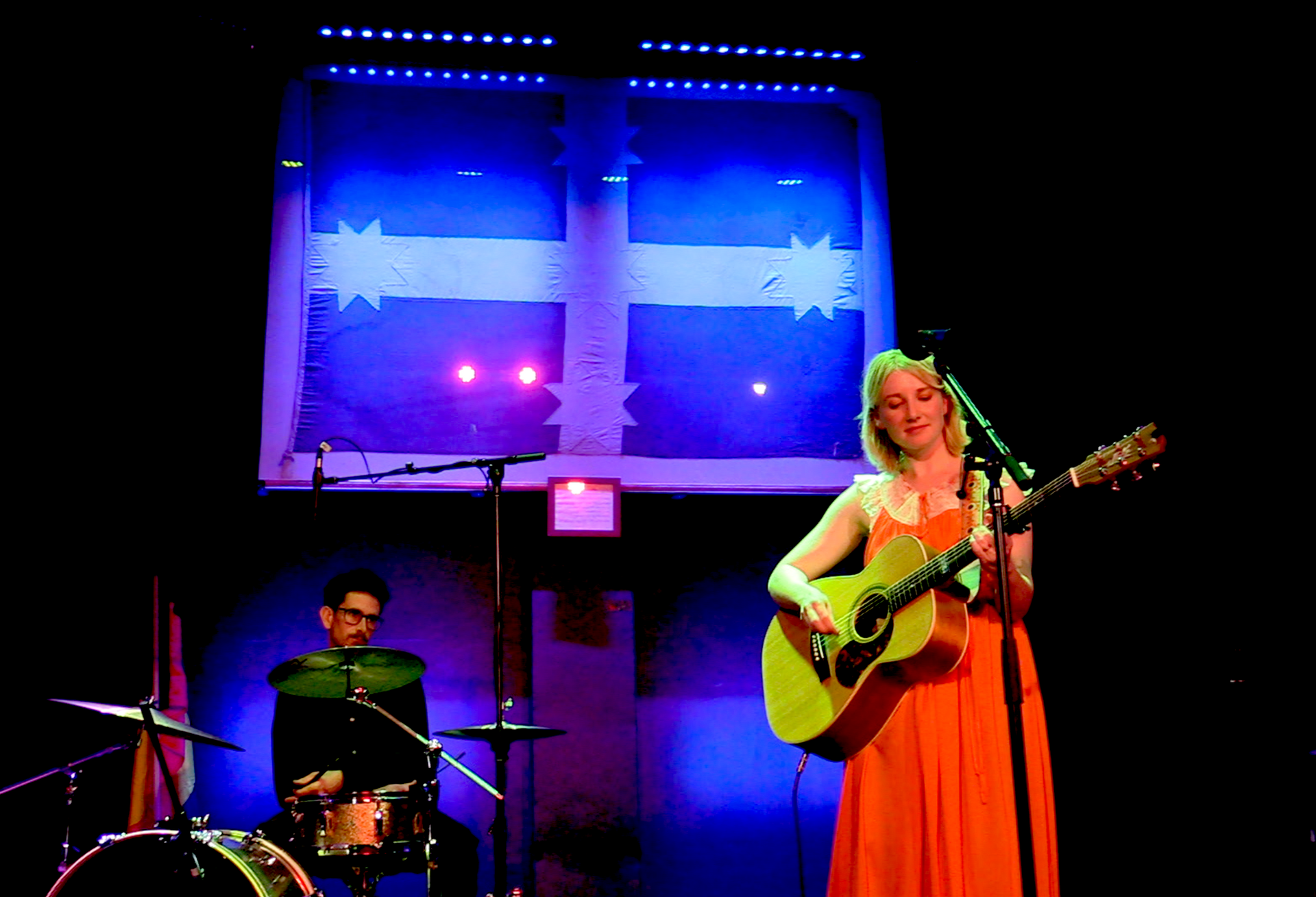

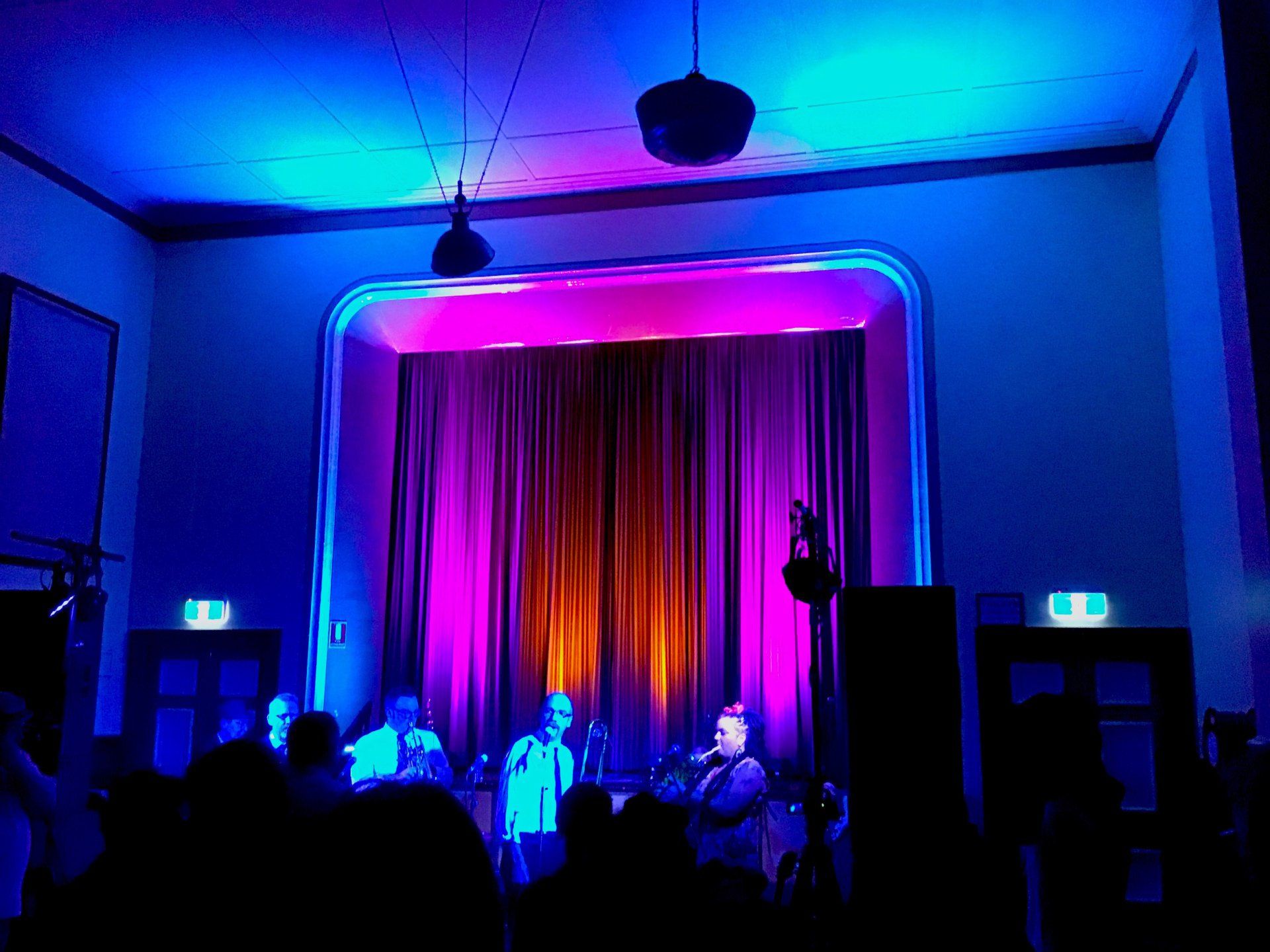

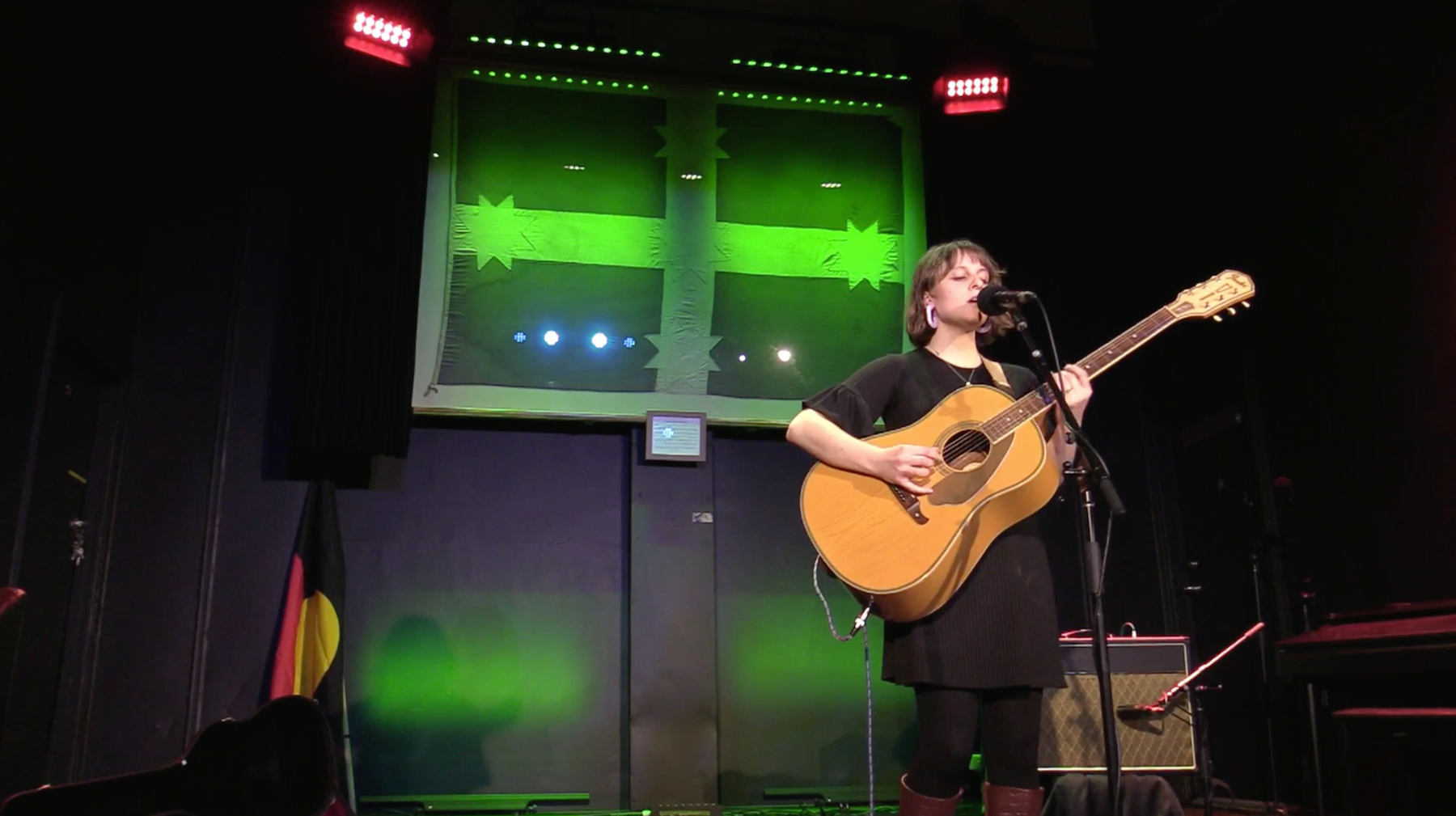

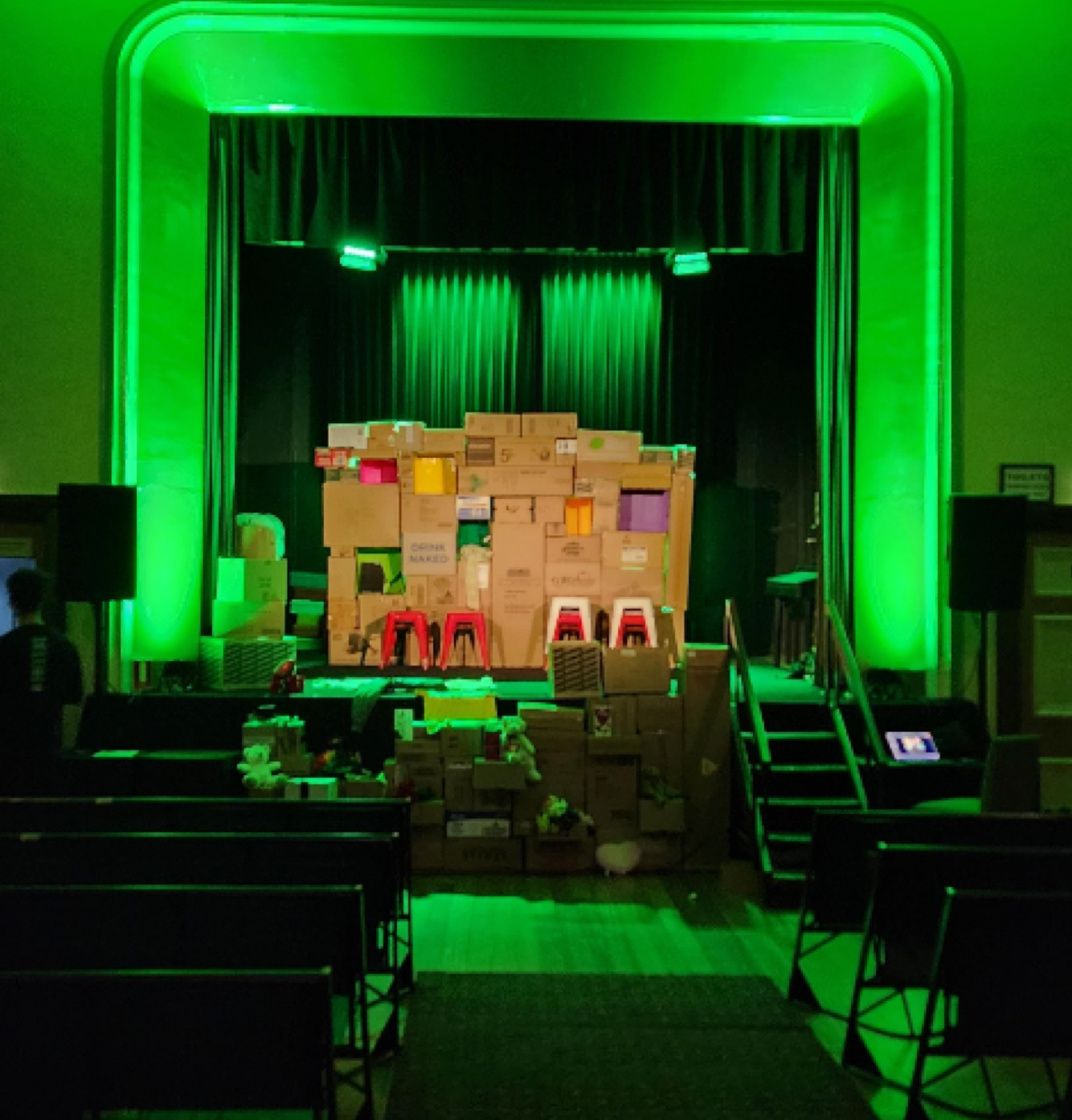

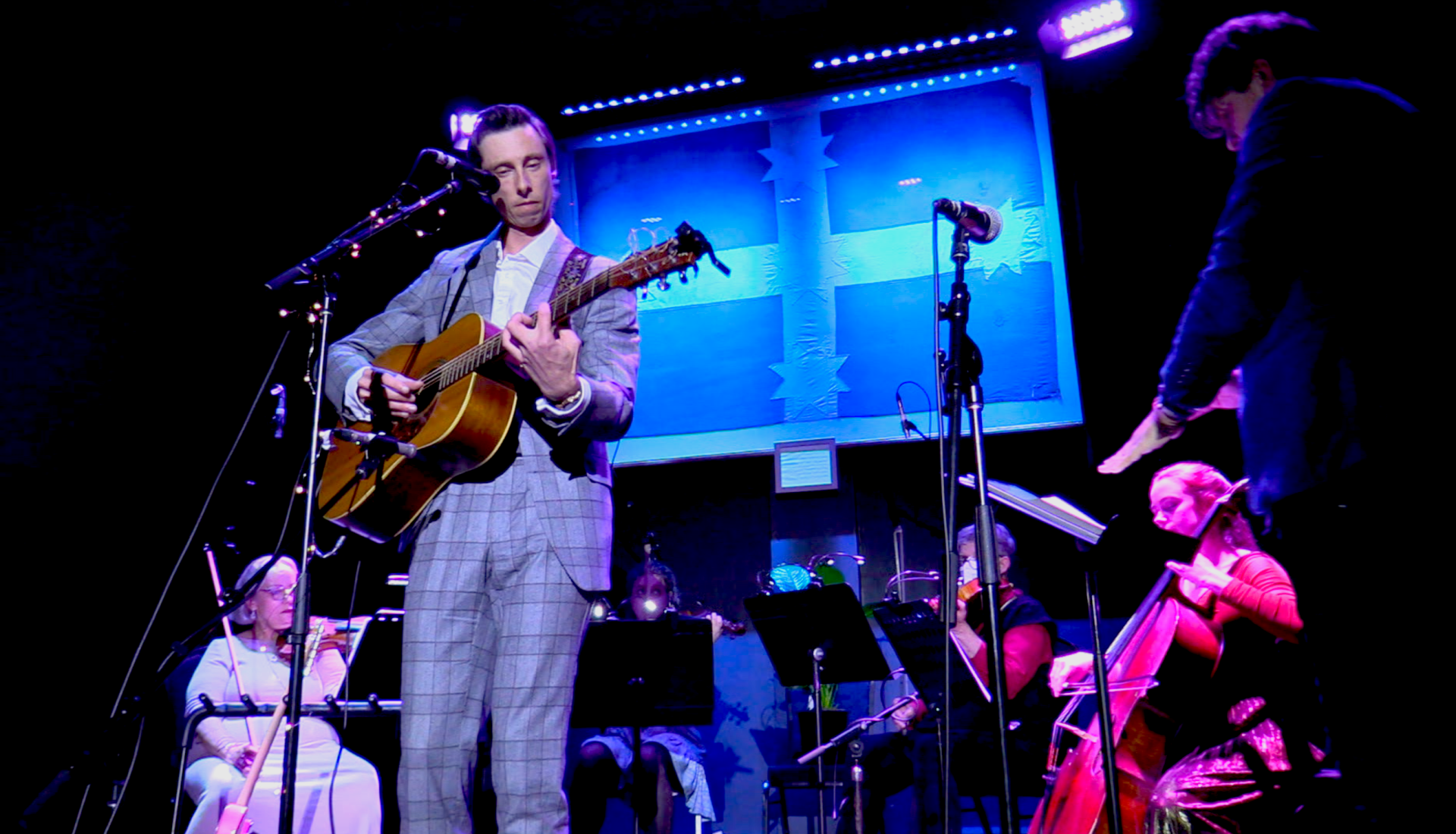

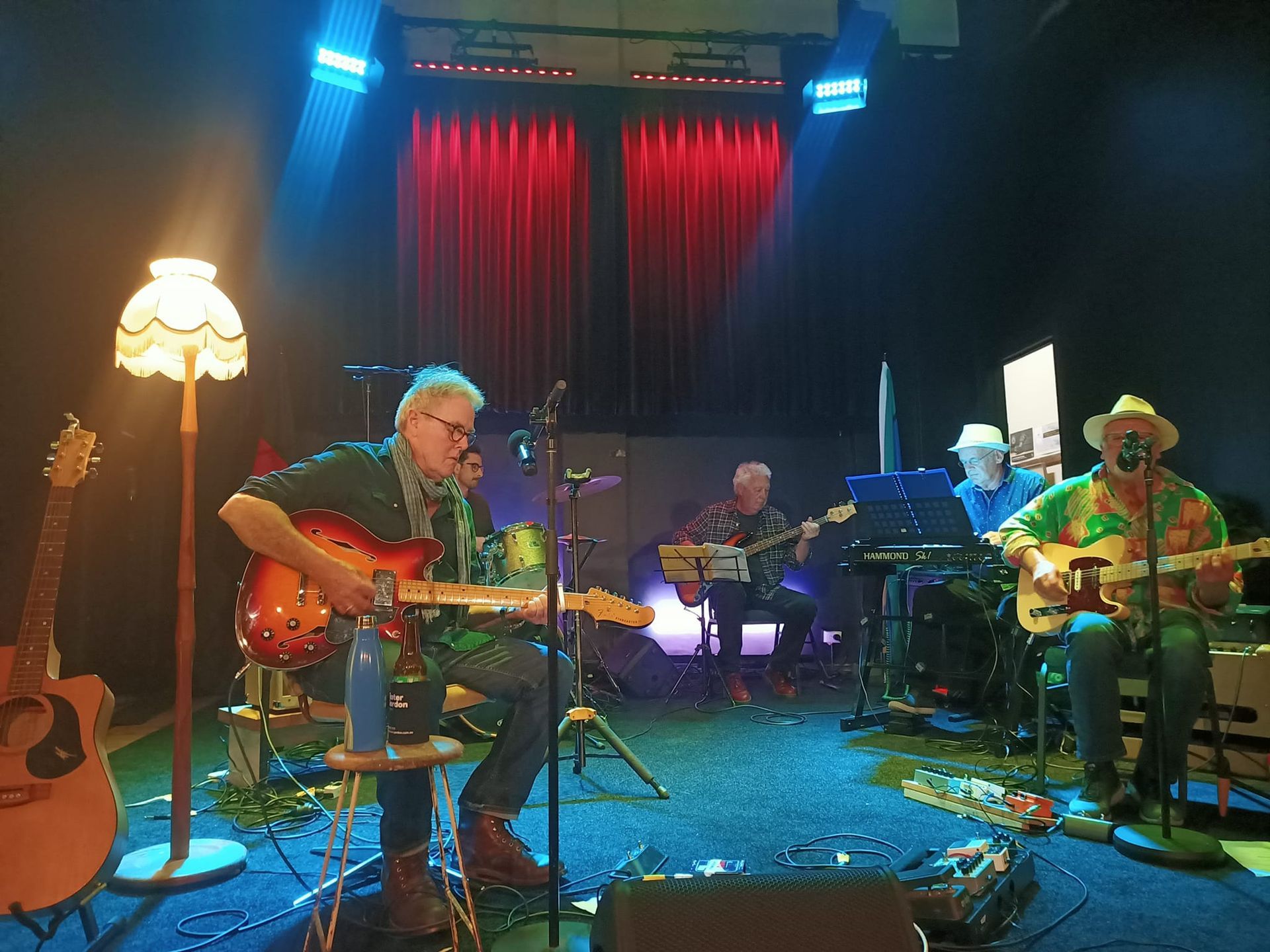

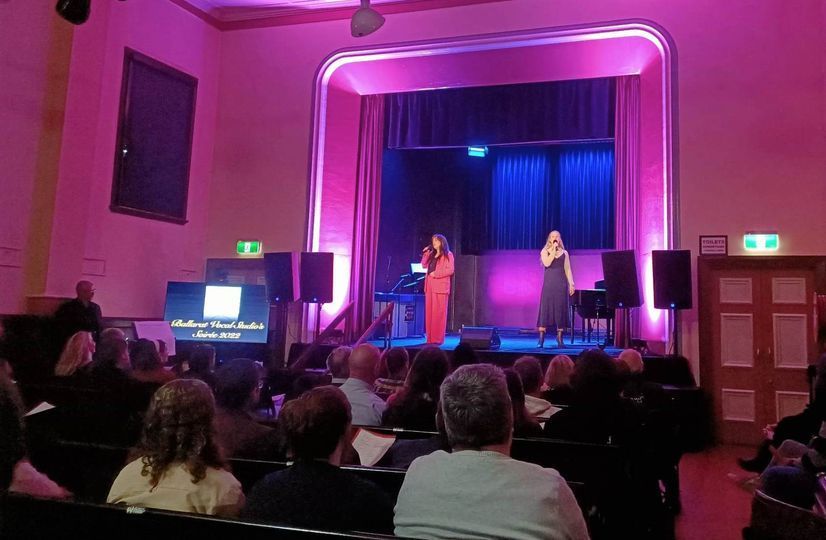

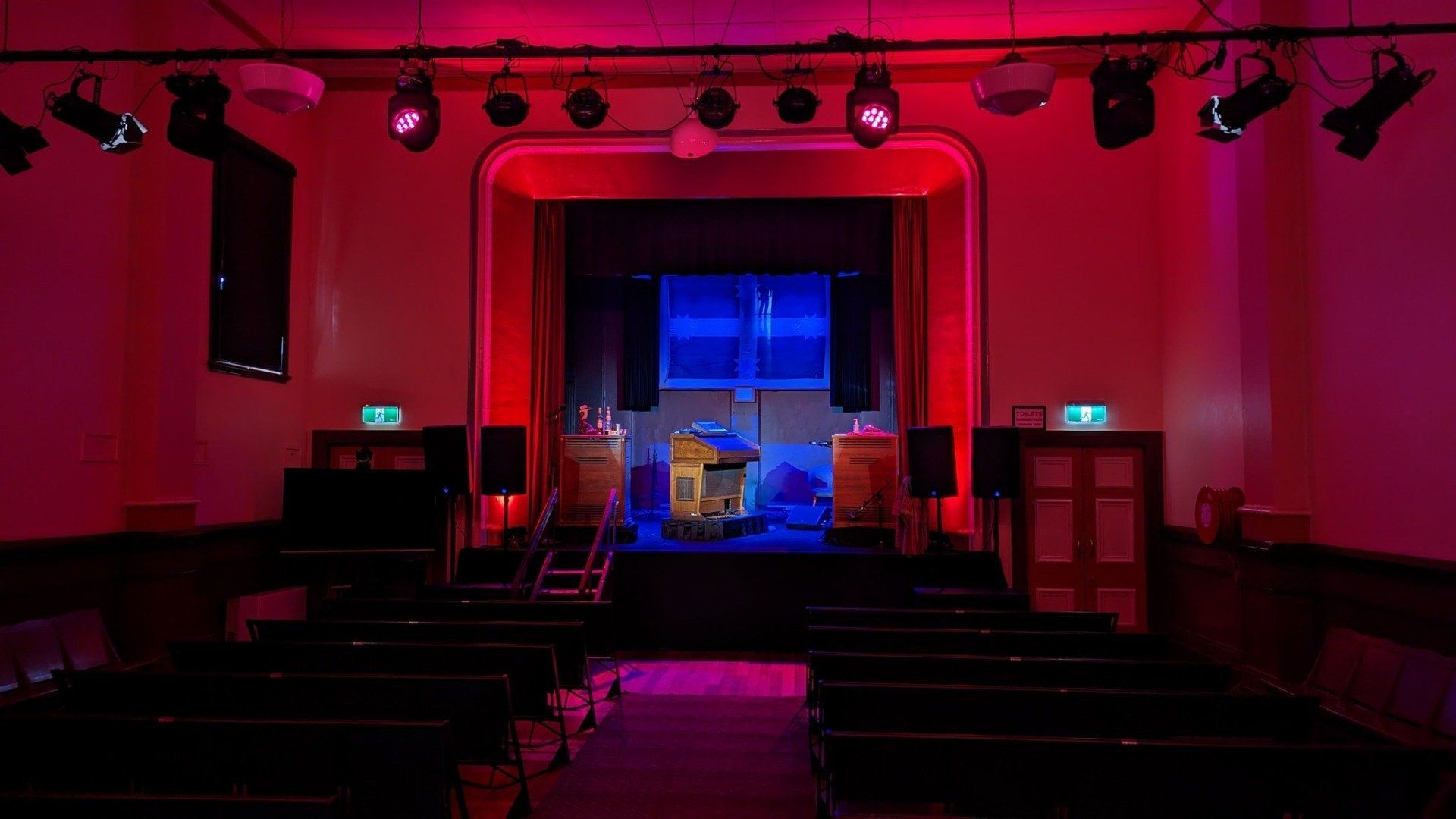

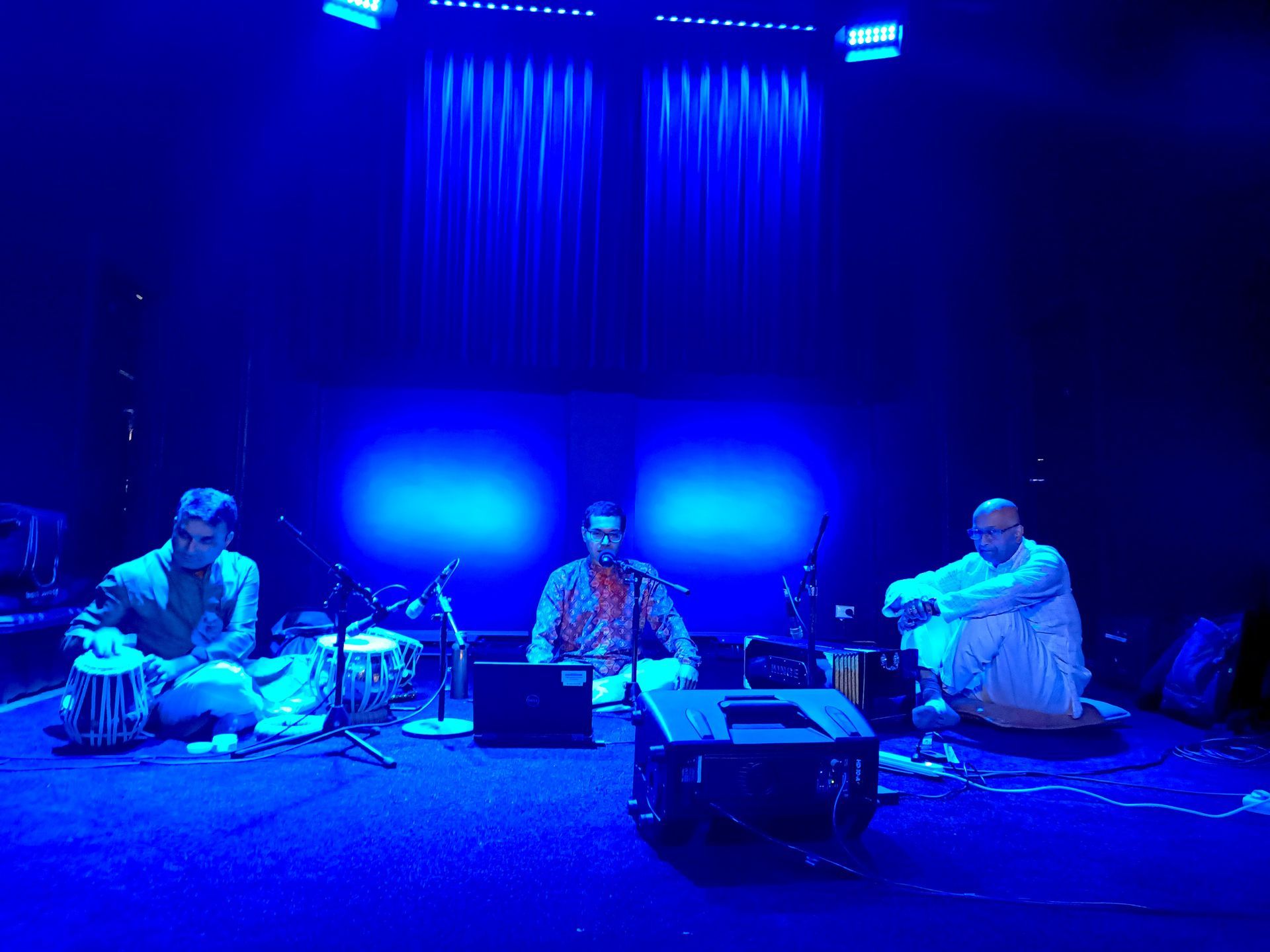

Previous Shows

TECHNICAL
SPECIFICATIONS

SPEAKER SYSTEM

4 x Turbosound IQ18B powered subs

4 x Turbosound IQ15 Powered 15” two way

4 x Turbosound TFM122M-AN Premium 12” foldback wedges

MIX & PATCH

1 x Midas M32 Live Mixer

1 x Midas DL32 Stage box

1 x Behringer Powerplay P16-D Digital Ultranet Distributor
1 x DLink Wireless Router
1 x iPad with M32Mix App

Assorted Cat6 network cables 30m, 20m, 10m and 2m

MICROPHONES & STANDS

4 x K&M Round Base boom stands

6 x K&M 210/6 boom stands

6 x K&M Short boom stands

6 x Shure Beta58a Mic

6 x Shure SM57 Mic

1 x Shure PGA-7 Drum Mic kit
4 x DI Boxes

4 x Shure BLXR rack mount Beta58 handheld radio mic systems

4 x Shure BLX1 bodypack with Shure PGA31 headset mic

2 x AKG P420 dual diaphragm Condenser mics

2 x AKG P170 pencil Condenser mics
40 x XLR Leads

LIGHTING

1 x LSC Mantra Lite Console

1 x LSC Mantra Lite USB Wing

1 x Chauvet Opto DMX splitter 3/5 pin combo

4 x Chauvet EVE-F50Z fresnel

8 x Chauvet SlimPAR Pro H LED

2 x Chauvet Intimidator Spot 375Z moving head profile

4 x Chauvet Intimidator Wash 450IRC Zoom moving head wash

4 x Chauvet Slim Bank T18 LED wash

4 x Chauvet Colourband T3 USB


PROJECTION & DISPLAY

1 x Ricoh PJ WU6181N Ultra HD Projector (short throw lens)

4 x Data Projectors (1 x short throw) various specs

1 x Fly-In 4m x 4m Aluminum framed cinema screen
1 x TCL 65” LCD Monitor on Wheels
1 x Skype / Teams / Zoom connected PC
1 x Audio Conference microphone
1 x PTZ Camera mounted with Screen and pc

1 x 42” LCD Monitor / smart tv

EXTRA EQUIPMENT AVAILABLE - POA

8 x Chauvet Slim Par Pro H 0 USB (for Floor LX)
1 x DiFi Wireless DMX USB
1 x DiFi Transmitter
1 x Chauvet 12ch DMX Desk
3 x Canon XA35 HD Cameras
3 x Safari Tripods
1 x BlackMagic 8ch ATEM HD TV Studio Switcher
1 x Atomos Shogun Inferno HD Video Recorder
1 x BlackMagic Intensity Shuttle with Thunderbolt capture card
1 x Midas 8ch Analog Mixer
5 x Beta 58
5 x Beta 57
2 x Sennheiser 421
1 x Beta 52 mike
2 x Beta 98 mike
2 x Sennheiser 916 condenser mikes
2 x Radial J48 DI Boxes
2 x Behringer DI Boxes
6 x Round Base K&M Boom stands
6 x tall K&M Boom stands
5 x short K&M Boom stands
1 x 6ch Wired Talkback Beltpacks and Headsets (Jands)
1 x 2ch Talkback Masterstation (Jands)
2 x Wireless 5.4Ghz talkback headsets

PORTABLE PA

1 x 2000w Behringer PPA2000BT portable PA with 2 x HH radio mikes and Bluetooth music playback

1 x Behringer corded mike

1 x Shure corded mike

4 x K&M 210/6 boom stands

2 x Speaker stand tripods for Behringer PA

4 x Battery Powered Bull Horns

1 x Yamaha 2.4kva petrol (unleaded) generator

Assorted power and microphone leads, power boards and adaptors

2 x LED 2 x tripod stand flood lights

2 x LED floor stand flood lights


STAGE TECH PLAN

Download
